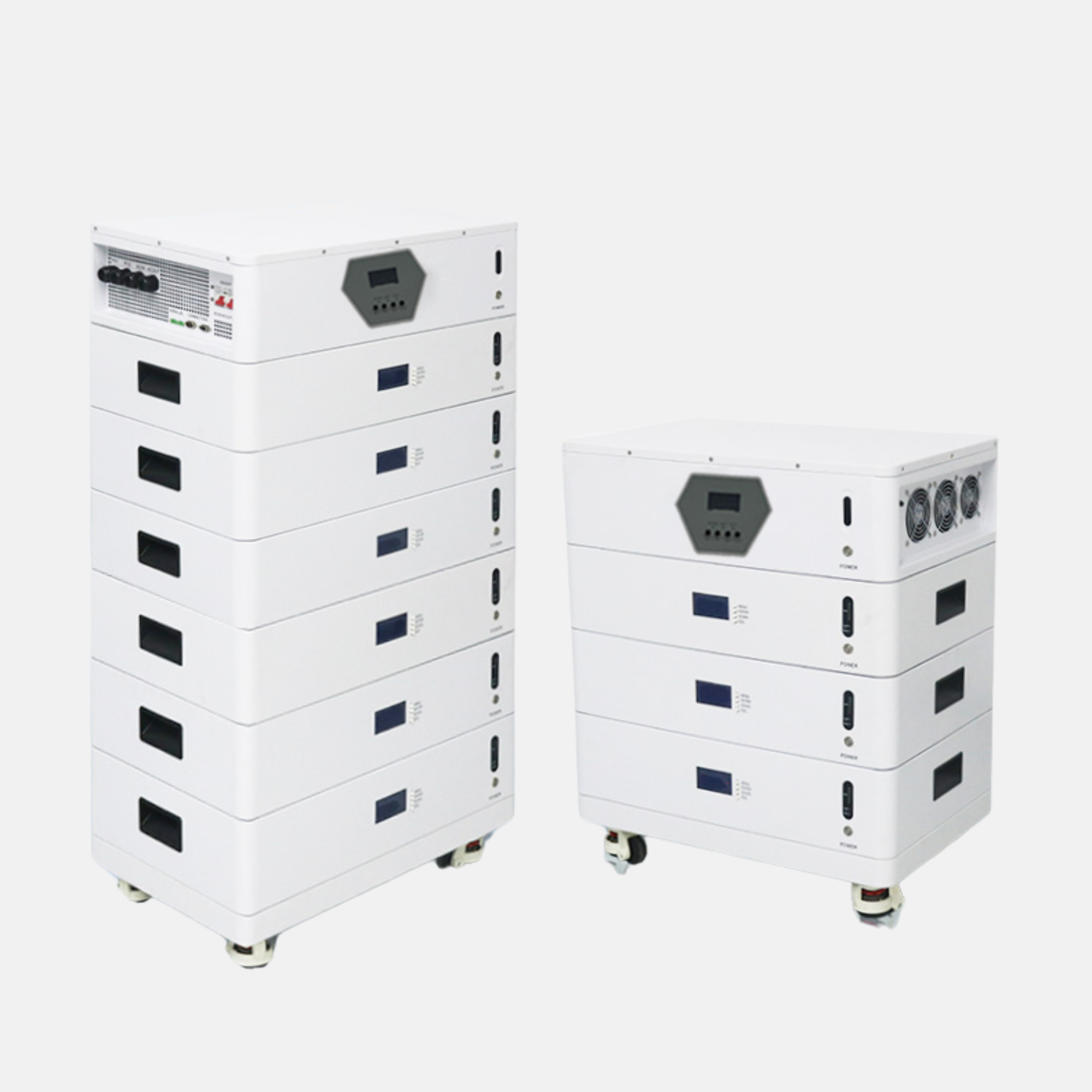

ST-TP60 High Pressure Stacked Storage Battery

$0.00

The ST-TP60 High Pressure Stacked Storage Battery by LikingEnergy is a high-performance LiFePO₄ energy storage solution tailored for residential, commercial, and off-grid solar applications. Available in 30kWh to 60kWh modular configurations (3 to 6 stackable units), it features a high-energy density, smart BMS, and IP55 waterproof rating, making it ideal for harsh environments in Southeast Asia, Africa, and beyond. Each module delivers stable voltage and current, with long cycle life (>6000 cycles @ 80% DOD), and supports CAN/RS485 communication for seamless inverter integration. Its floor-standing installation, parallel expansion support, and compact vertical design make it space-saving and easy to maintain. Perfect for smart homes, small businesses, and energy backup systems.

ST-TP60 High Pressure Stacked Storage Battery | Key Features

  • Modular Design 30kWh to 60kWh Flexible Capacity
  • Smart BMS & High Compatibility
  • High Voltage & Stable Output
  • Parallel Expandability & System Flexibilitye

*Send an inquiry to get a quote from the manufacturer immediately!

Technical Specifications – ST-TP60 Pressure Stacked Storage Battery



Item 3-Module 4-Module 5-Module 6-Module
Nominal Capacity (kWh) 30 40 50 60
Cell Matching 32S1P × 3 32S1P × 4 32S1P × 5 32S1P × 6
Nominal Voltage (V) 307 409 512 614
Working Voltage Range (V) 268.8 – 345.6 358.4 – 460.8 448 – 576 537.6 – 691.2
Nominal Working Current 100A 100A 100A 100A
Peak Charge/Discharge Current 110A 110A 110A 110A
Battery Type LFP (LiFePO₄) LFP (LiFePO₄) LFP (LiFePO₄) LFP (LiFePO₄)
Cycle Life >6000 @25°C, 80%DOD >6000 @25°C, 80%DOD >6000 @25°C, 80%DOD >6000 @25°C, 80%DOD
Self-Discharge Rate <3.5% / month @25°C <3.5% / month @25°C <3.5% / month @25°C <3.5% / month @25°C
Communication Port CAN / RS485 CAN / RS485 CAN / RS485 CAN / RS485
Operating Temperature 0 – 55°C 0 – 55°C 0 – 55°C 0 – 55°C
Waterproof Rating IP55 IP55 IP55 IP55
Installation Method Floor-standing Floor-standing Floor-standing Floor-standing
Dimension (W×D×H mm) 895×557.5×640 895×557.5×855 895×557.5×1070 895×557.5×1288
Weight (kg) 260 340 430 520
Module Series Connection 3S–6S 3S–6S 3S–6S 3S–6S



Why Choose the High Pressure Stacked Storage Battery?

The ST-TP60 High Pressure Stacked Storage Battery is more than just a power backup solution — it’s a high-performance energy storage system engineered to meet the growing demands of both residential and commercial users in diverse global markets. Whether you're supporting solar PV integration, enhancing energy independence, or building resilient off-grid systems, this battery delivers consistent power and long-term reliability.

At its core, the system adopts modular stackable architecture, allowing capacities to scale from 30kWh to 60kWh using 3 to 6 high-voltage LFP modules. Each module is built with a 32S1P configuration and LiFePO₄ chemistry, ensuring superior thermal stability, extended cycle life (6000+ cycles @ 80% DOD), and excellent safety performance. Equipped with a smart BMS that supports RS485/CAN communication, the battery ensures smooth integration with mainstream hybrid and off-grid inverters.

In a world that demands energy resilience, flexibility, and sustainability, the High Pressure Stacked Storage Battery is your trusted choice — engineered for now, built for the future.

High Pressure Stacked Storage Battery Factory Direct Supply & Wholesale Advantage

The ST-TP60 High Pressure Stacked Storage Battery is proudly manufactured by LikingEnergy, a direct-from-factory energy storage solution provider. By eliminating middlemen, we offer competitive wholesale pricing, fast delivery, and consistent product quality. Our vertically integrated production ensures strict quality control, stable supply chain, and the flexibility to meet large-volume project orders or OEM customization needs. Whether you're an installer, distributor, or project developer in Southeast Asia or Africa, our factory-direct model gives you the cost efficiency and service reliability your market demands.

Key Advantages & Features of ST-TP60 High Pressure Stacked Storage Battery

Flexible Capacity: 30kWh to 60kWh Modular Design

The system is available in 3–6 stacked modules, offering scalable energy from 30kWh to 60kWh, making it adaptable to various energy needs—from homes to small commercial setups.
