Lik-D05-B01 Wall Mounted Lithium Battery 51.2V

Lik-D05-B01 Wall Mounted Lithium Battery 51.2V

$0.00

d05-b01 wall mounted lithium battery The wall-mounted structure design saves space, uses highly safe lithium iron phosphate (LiFePO₄) batteries, has a cycle life of over 6,000 times, is equipped with an intelligent BMS system, can realize multi-battery parallel operation, supports real-time monitoring, has multiple protection mechanisms, stable performance, adapts to harsh working conditions, and ensures safe system operation. Whether it is a home user pursuing energy independence or an off-grid project with high requirements for power stability, Liking Energy lithium batteries are a trustworthy choice.

Wall-Mounted Lithium Battery | Key Features

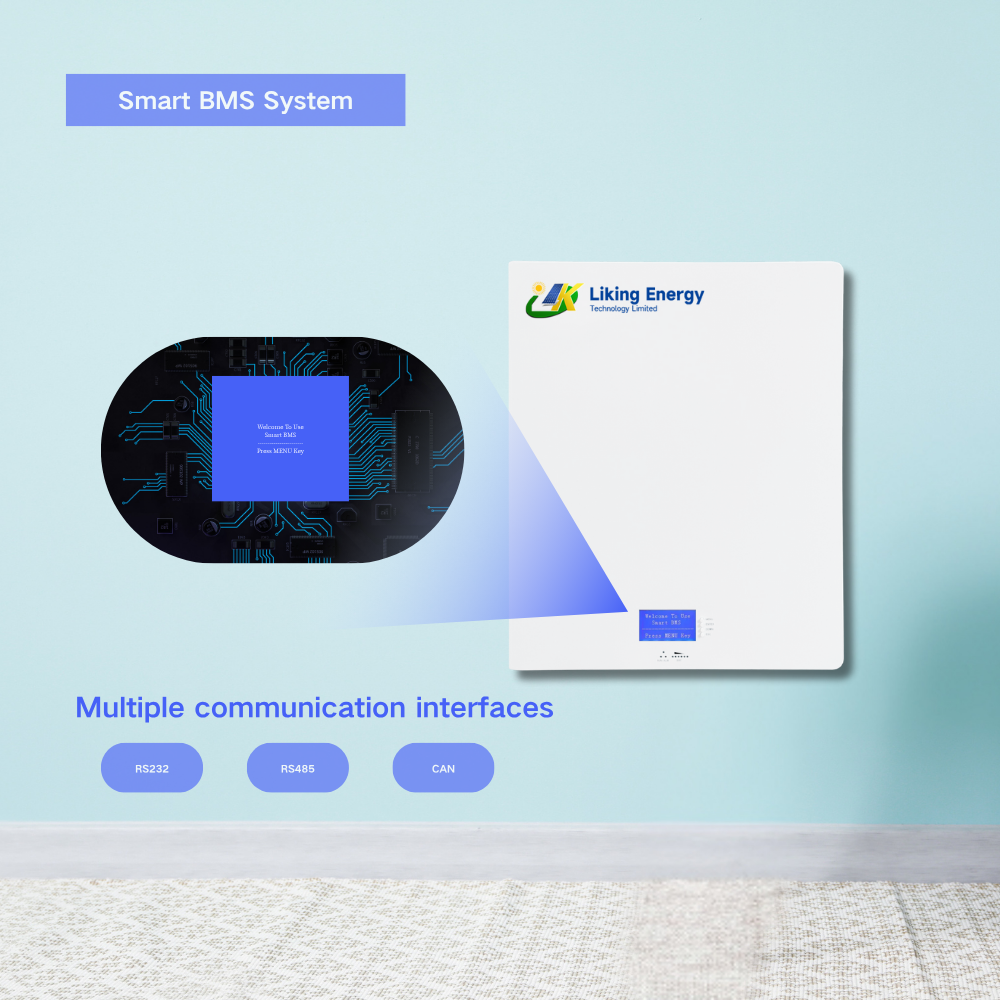

Smart BMS System

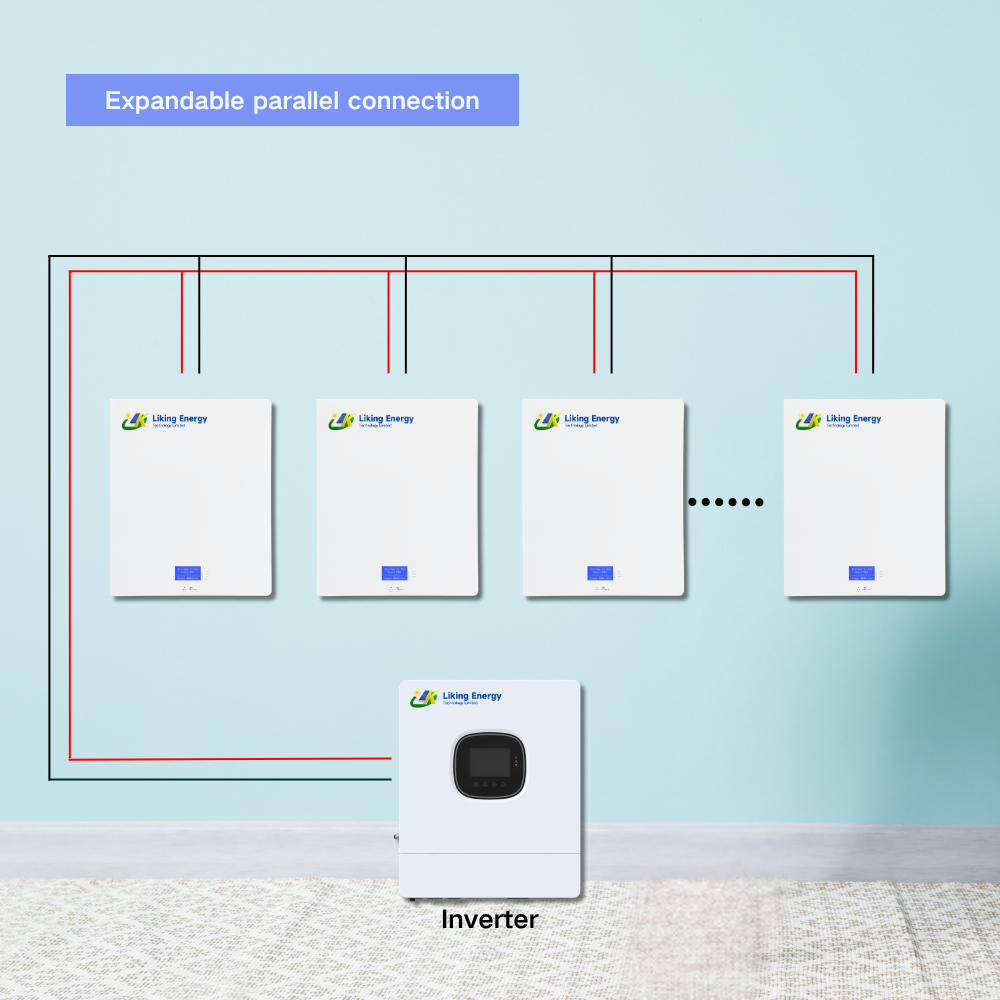

Scalable Parallel Design
Long Lifespan & High Cycle Life
Wall-Mounted Space-Saving Design

Nominal voltage Capacity:51.2V 100Ah

Variant

*Send an inquiry to get a quote from the manufacturer immediately!

Wall Mounted Lithium Battery | 51.2V 100Ah / 200Ah Technical Specifications

Specification	51.2V 100Ah	51.2V 200Ah
Nominal Voltage (V)	51.2	51.2
Nominal Capacity (Ah)	100	200
Energy (Wh)	5120	10240
Dimension (mm)	H600 × W555 × D224.5	H700 × W580 × D225
Weight (kg)	52	92
Discharge Cut-off Voltage (V)	40	40
Charge Cut-off Voltage (V)	58.4	58.4
Communication Interface	RS485, RS232, CAN	RS485, RS232, CAN
Battery Configuration	16 series 1 parallel	16 series 1 parallel
Operating Temperature	0~55°C	0~55°C
Design Life	10+ Years (at 25°C / 77°F)	10+ Years (at 25°C / 77°F)
Cycle Life	>6000 cycles @ 80% DOD, 25°C	>6000 cycles @ 80% DOD, 25°C
Certification	CE / UN38.3 / MSDS	CE / UN38.3 / MSDS
Max Charge/Discharge Current	100A	200A
Max Parallel Connections	15 Units	15 Units

Reliable Wall-Mounted Lithium Battery Solutions for Smart Energy Systems

Liking Energy specializes in manufacturing high-performance wall-mounted lithium batteries designed for modern energy storage applications. Our 51.2V 100Ah and 200Ah LiFePO₄ battery models feature a compact, wall-mountable design, ideal for residential, commercial, and small-scale industrial use.

Equipped with an intelligent BMS (Battery Management System), the battery ensures precise protection, real-time monitoring, and optimized performance in various environments. It supports multi-unit parallel connection, allowing users to easily expand system capacity for higher energy demands.

Built with durability in mind, the system offers long cycle life, strong safety features, and stable output, making it a cost-effective and long-term power solution for solar energy storage, backup systems, and off-grid setups.

As a dedicated lithium battery manufacturer, Liking Energy provides OEM/ODM customization, professional technical support, and strict quality control to deliver dependable energy storage products tailored to global customers' needs.

Wall-Mounted Lithium Battery Manufacturer

Liking Energy is a trusted manufacturer of wall-mounted lithium batteries, specializing in advanced energy storage solutions for residential, commercial, and solar power systems. With years of experience in lithium battery R&D and production, we provide reliable, high-performance 51.2V 100Ah/200Ah LiFePO₄ batteries designed for long service life, enhanced safety, and easy installation.
Our wall-mounted batteries feature intelligent BMS systems, modular parallel support (up to 15 units), and compact space-saving designs—ideal for homes, solar storage systems, and backup power applications. Backed by CE, UN38.3, and MSDS certifications, we ensure both product quality and compliance with international standards. OEM/ODM customization is also available to meet the unique needs of global partners.

lik-d05-b01 wall mounted lithium battery 51.2v 100AH/200AH Advantages

Delivering Dependable Power Solutions

Liking Energy's wall-mounted lithium battery uses lithium iron phosphate (LiFePO₄) chemistry, known for its excellent thermal stability and electrical safety. It delivers a stable and reliable power supply suitable for residential energy storage, off-grid solar systems, telecom base stations, and data centers. With stable voltage, precise capacity, and low internal resistance, it ensures uninterrupted power even under high-load and frequent discharge conditions.
