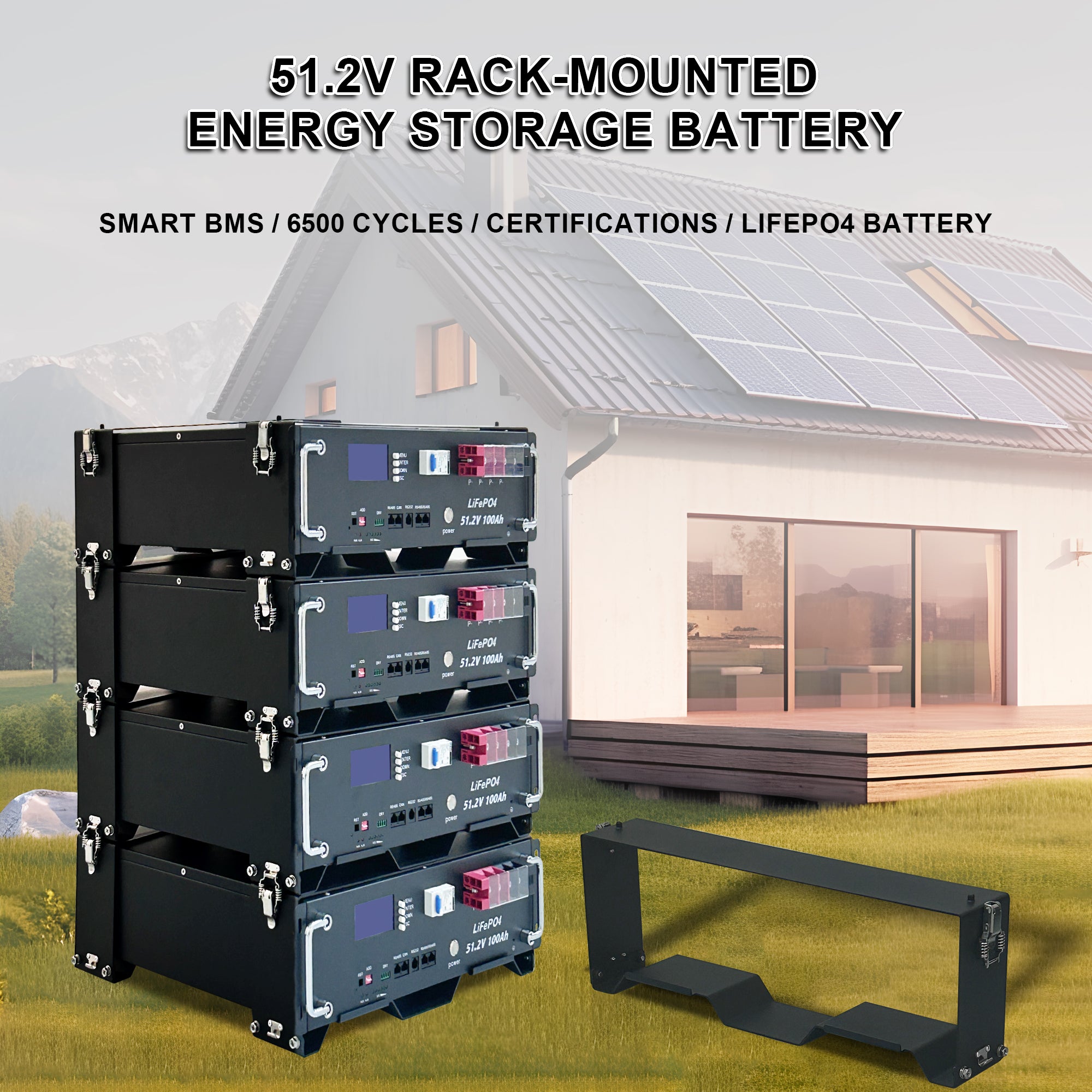

The Liking rack-mounted lithium battery is specially designed for home, telecom, solar, and industrial energy storage applications. Using high-quality LiFePO₄ cells, this 48V/51.2V battery module delivers stable performance, enhanced safety, and long cycle life in a compact and space-saving 19" standard rack design. Available in 100Ah and 205Ah capacities, it is ideal for use in off-grid solar systems, UPS backup, and renewable integration projects.

Rackmount LiFePO4 Battery 48/51.2V | Key Features

  • Smart BMS with Multi-Protocol Communication
  • Modular & Scalable Design
  • Long Cycle Life, Up to 6000+ Cycles
  • Standard Rackmount Design
Nominal voltage Capacity:51.2V 100Ah

*Send an inquiry to get a quote from the manufacturer immediately!

Technical Specifications – Rackmount LiFePO₄ Battery



Product Model LIK-D05-U01 (100Ah) LIK-D05-U02 (205Ah)
Nominal Voltage (V) 51.2 51.2
Nominal Capacity (Ah) 100 205
Energy (Wh) 5120 10496
Dimensions (mm) L420 × W482 × H133 L650 × W442 × H222
Weight (kg) 47 92
Discharge Cut-off Voltage (V) 40 40
Charge Cut-off Voltage (V) 58.4 58.4
Communication Interface RS485, RS232, CAN RS485, RS232, CAN
Combination of Battery Cells 16 series 1 parallel 16 series 1 parallel
Operating Temperature 0~55°C 0~55°C
Design Life 10+ Years (25°C / 77°F) 10+ Years (25°C / 77°F)
Cycle Life >6000 cycles @80% DOD >6000 cycles @80% DOD
Certification CE / UN38.3 / MSDS CE / UN38.3 / MSDS
Max Charge/Discharge Current 100A 100A
Max Parallel Units 15 15



Reliable Rackmount LiFePO4 Battery Solutions for Modern Energy Applications

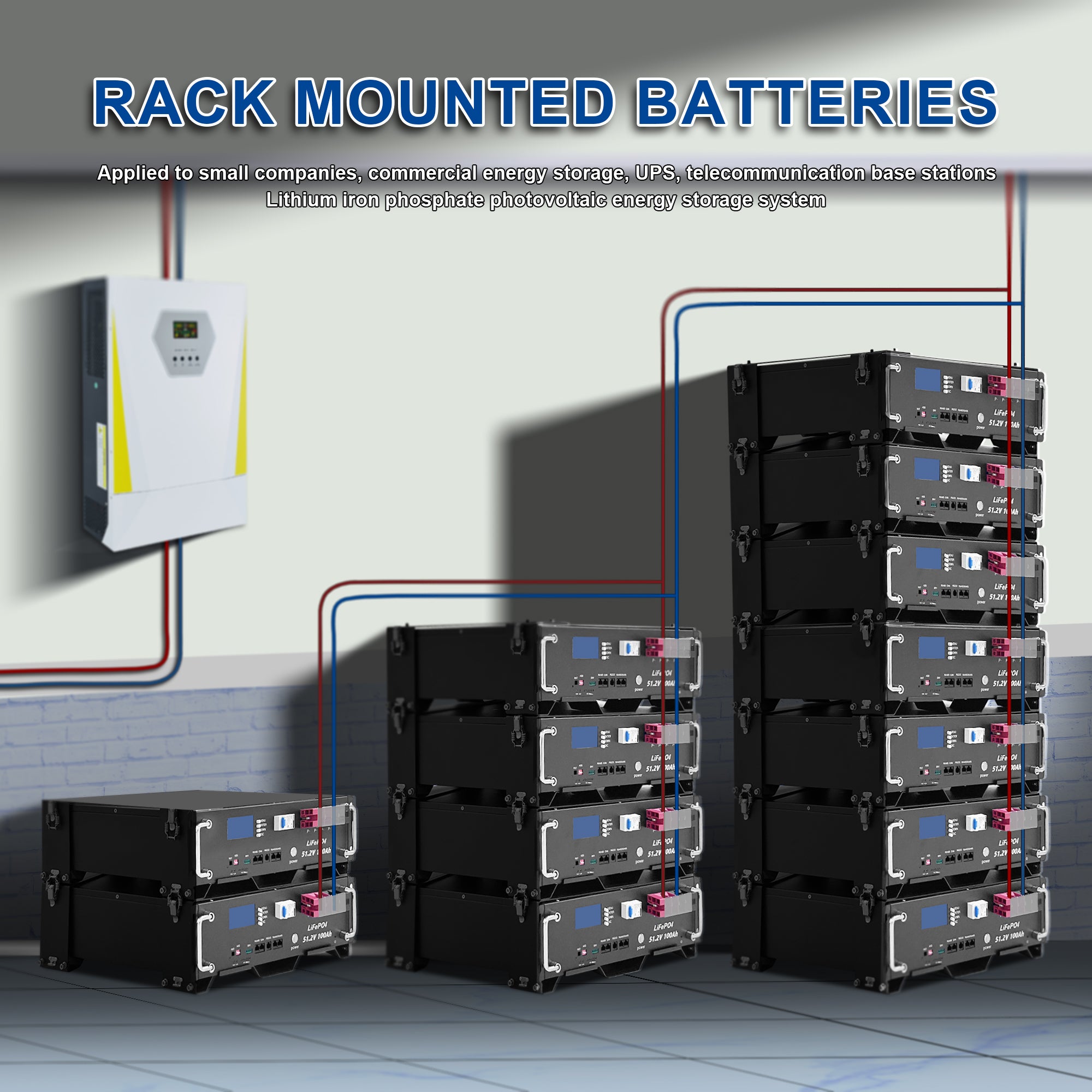

Liking Energy offers high-performance rackmount LiFePO4 battery systems designed to meet the needs of modern energy storage and backup power systems. Our 48V/51.2V 100Ah and 205Ah LiFePO4 batteries are housed in a standard 19-inch rackmount enclosure and are ideal for server rooms, data centers, solar energy storage, telecom base stations, and UPS backup systems.

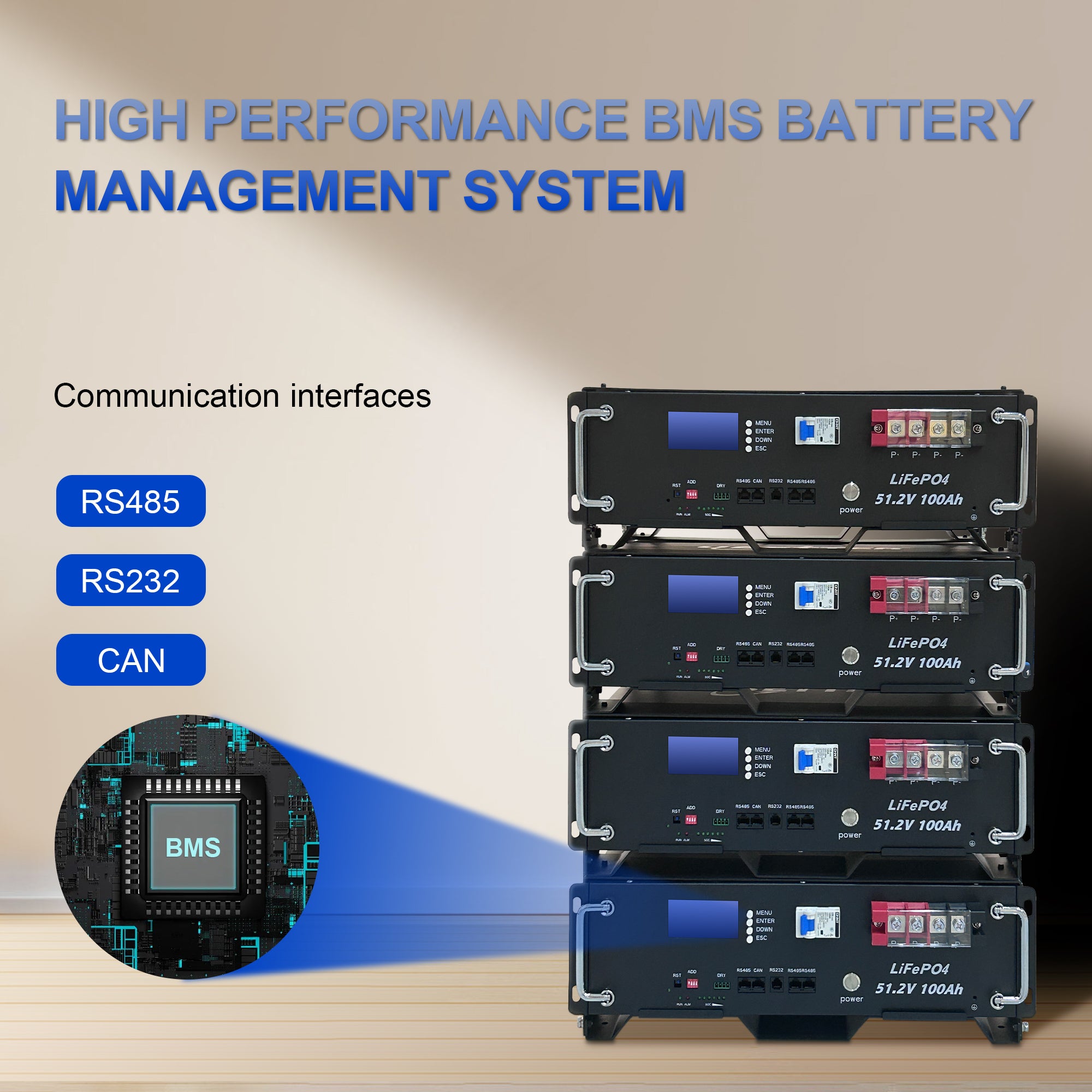

Each unit is equipped with an advanced intelligent BMS (Battery Management System) that provides multi-level protection, precise voltage balancing, real-time monitoring, and reliable communication via RS485, RS232, and CAN protocols. This ensures that the battery operates safely and efficiently under a wide range of load and environmental conditions.

As a trusted lithium battery manufacturer, Liking Energy provides complete OEM/ODM customization services, strict quality control, and fast-response technical support to meet the specific needs of residential, commercial, and industrial customers around the world.

Rackmount LiFePO₄ Battery Factory

Liking Energy is a specialized manufacturer of rackmount LiFePO₄ batteries, offering 48V/51.2V systems in 100Ah and 205Ah capacities. Our factory integrates automated production lines and strict quality control to ensure stable performance, long cycle life, and compliance with international certifications such as CE, UN38.3, and MSDS.
Each unit is equipped with an advanced BMS supporting multi-parallel connection and mainstream inverter communication (RS485, RS232, CAN). We offer OEM/ODM customization for global partners, delivering reliable, scalable energy storage solutions for residential, commercial, and industrial applications.

Rackmount LiFePO4 Battery 48/51.2V Advantages

Rackmount LiFePO4 Battery Solutions

Liking Energy offers high performance rackmount LiFePO4 battery systems designed to meet the needs of modern energy storage and backup power systems. Our 48V/51.2V 100Ah and 205Ah LiFePO4 batteries come in a standard 19-inch rackmount enclosure and are ideal for server rooms, data centers, solar energy storage, telecom base stations, and UPS backup systems.
